Creating Calendar Views

Calendar views are useful for displaying the contents of a document in a calendar or day-planner format. Quite a few features are available in Notes and Domino 6 for building and working with Calendar views.

To create a Calendar view, it is best to create a form to capture the information before you create the Calendar view. The form should capture the following information:

• Entry date
• Start time
• End time
• Subject

You can create a Calendar view from scratch, or you can convert a standard Outline view to a Calendar view by changing the Style drop-down list on the View Info tab of the View properties box. You must observe a few rules when you work with a Calendar view. The first column must contain a date/time entry, sorted in ascending order. This column is typically hidden and contains a date value plus a time value that is used to position the entry in the calendar. The second column must evaluate to the duration of the calendar entry and should also be hidden. For example, you can calculate the difference between two time entries in minutes with the following formula:

(dEndTime - dStartTime)/60

The third column is the first visible column. You can place the time range in the column using a formula like this:

@Text(dStartTime) + " - " + @Text(dEndTime)

In the fourth column, you can place the subject or description of the entry. Figure 6.30 shows a simple Calendar view in design, and Figure 6.31 shows the resulting view.

Figure 6.30. This design of a simple Calendar view includes two hidden and two visible columns .

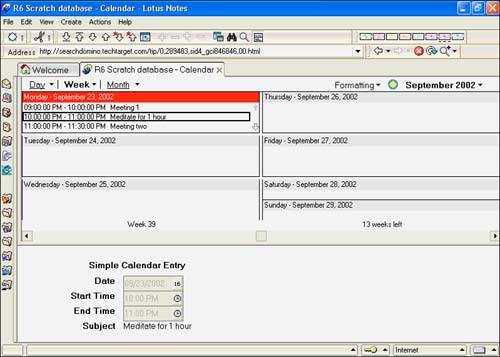

Figure 6.31. This Calendar view includes the basic elements to display an entry. A simple Calendar Entry form is visible at the bottom of the figure.

TIP

Most Calendar views do not need to display the view selection margin. If yours falls into this category, you can go to the Other section of the Style tab on the View properties box and make sure that Show Selection Margin isn't checked. It is also a good idea to check Extend Last Column to Window Width in the same section if your last column is the subject of the calendar entry.

Numerous properties are specific to Calendar views that are not available for a standard Outline view. Those properties are discussed in the next few sections.

NOTE

Although Calendar views can be presented to Web clients (they appear as HTML tables), some calendar features are unavailable. Those features include the embedded group scheduler, a date picker, and group calendars.

Working with the Style Tab

The View Style tab for Calendar views is significantly different than the corresponding tab for a standard Outline view, and many options are new to Notes and Domino 6. There are options to define the view background, header, and date areas. See Figure 6.32. Table 6.5 describes some of the features available on the View Style tab.

Figure 6.32. The View Style tab has many features new to Notes and Domino 6.

Table 6.5. View Style Tab Sections

Understanding the Date and Time Format Tab

The Date and Time Format tab has changed considerably from R5. This tab determines what calendar formats are available, what time slots are available, and whether entries are grouped by time slot. See Figures 6.33 and 6.34. The options and their descriptions are explained in Table 6.6.

Figure 6.33. The Date and Time Format tab showing the settings available for the initial format.

Figure 6.34. The Date and Time Format tab showing the settings for the time slot display checked.

Table 6.6. Date and Time Format Tab
