Application service design (a step-by-step process)

Application services are the workhorses of SOA. They represent the bottom sub-layer of the composed service layer (Figure 15.10), responsible for carrying out any of the processing demands dictated to them by the business and orchestration layers.

Figure 15.10. Application services establish the bottom sub-layer of the service layer.

Unlike services in business-centric layers, the design of application services does not require business analysis expertise. The application service layer is a pure, service-oriented abstraction of an organization's technical environments, best defined by those who understand these environments the most.

Because of the many real-world and technology-specific considerations that need to be taken into account, application services can be the hardest type of service to design. Further, the context established by these services can be constantly challenged, as technology is upgraded or replaced, and as related application logic is built or altered.

15.3.1. Process description

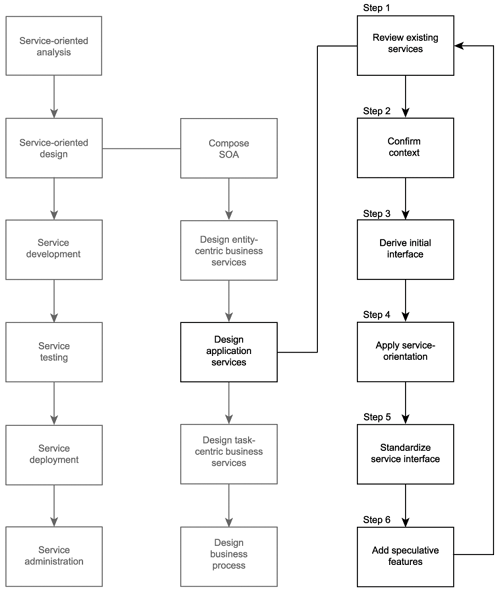

Figure 15.11 provides a proposed service design process for creating application service interfaces. Note that all references made to "application services" in this and remaining chapters imply that they are reusable utility application services.

Figure 15.11. The application service design process.

When viewing Figure 15.11, you'll notice that this process shares a number of steps with the previous entity-centric business service process. This is because both application and entity-centric services establish reusable service logic and therefore rely on parent controllers to compose them into business process-specific tasks.

However, there are key aspects in how the two processes differ. Note, for example, how the confirmation of the operation grouping context is isolated into a separate step. Establishing context for application services is an important and much less clear-cut part of service design.

Further, there is no step in which processing requirements are defined. This is primarily due to the fact that application services are responsible for implementing the processing details required to carry out the business logic of their parent business services. This, of course, does not mean that processing requirements for application services do not exist. They do, only they are part of the design of the underlying service application logic. Because we are only designing a service interface at this stage, it is not considered part of the process.

Let's begin putting together the application service interface.

Case Study

We now switch over to the RailCo environment, where the focus is on the design of the Transform Accounting Documents application service candidate (Figure 15.12) that was modeled in Chapter 12.

Figure 15.12. The Transform Accounting Documents Service candidate.



This candidate establishes a "document transformation context," which justifies the grouping of its two very similar operation candidates:

  • transform XML documents to native format

  • transform native documents to XML

These two lines of information establish a base from which we can derive a physical service design via the steps in the upcoming design process.



Step 1: Review existing services

More so with application services than with other types of reusable services, it is important to ensure that the functionality required, as per the application service candidate, does not, in some way, shape, or form, already exist. So it is very necessary to review your existing inventory of application services in search of anything resembling what you are about to design.

Additionally, because these services provide such generic functionality, it is worth, at this stage, investigating whether the features you require can be purchased or leased from third-party vendors. Because application services should be designed for maximum reusability, third-party Web services (which typically are built to be reusable) can make a great deal of sense, as long as required quality of service levels can be met.

Case Study

RailCo is delivering this service as part of a solution that is replacing their original hybrid Invoice Submission and Order Fulfillment Services. The only other service that exists within the RailCo environment is the TLS Subscription Service, used to interact with the TLS publishing extension. Therefore, this step is completed rather quickly, as little effort is required to determine that functionality planned for the Transform Accounting Document service will not end up being redundant.



Step 2: Confirm the context

When performing a service-oriented analysis it's natural to be focused on immediate business requirements. As a result, application service candidates produced by this phase will frequently not take the contexts established by existing application services into account.

Therefore, it is important that the operation candidate grouping proposed by service candidates be re-evaluated and compared with existing application service designs. Upon reassessing the service context, you may find that one or more operations actually belong in other application services.

Note

This step was not required as part of the entity-centric business service design, as the context of entity-centric services is predefined by the corresponding entity models.

Case Study

A review of the one existing RailCo service and the additional services planned as part of this solution confirms that the grouping context proposed for the two operation candidates of the Transform Accounting Documents service candidate is valid.



Step 3: Derive an initial service interface

Analyze the proposed service operation candidates and follow the steps below to define the first cut of the service interface:

  1. Using the application service candidate as your primary input, ensure that the granularity of the logic partitions represented by the operation candidates are appropriately generic and reusable.

  2. Document the input and output values required for the processing of each operation candidate and define message structures using XSD schema constructs (which essentially establishes the WSDL types construct).

  3. Complete the abstract service definition by adding the portType (or interface) area (along with its child operation constructs) and the necessary message constructs containing the part elements that reference the appropriate schema types.

Note that as generic units of processing logic, application services will be used by different types of business services. Each business service will be processing a different type of business document (invoice, purchase order, claim, etc.). Therefore, application services need to be designed in such a manner that they can process multiple document types. Depending on the nature of the information being processed, there are several design options.

Examples include:

Case Study

RailCo begins by deriving the two operation names shown in Figure 15.13.

Figure 15.13. The first cut of the Transform Accounting Documents Service.



It then moves on to define the types construct of its service definition to formalize the message structures. First, it tackles the request and response messages for the TransformToNative operation.

Example 15.9. The XSD schema types required by the TransformToNative operation.



Upon assessing the message requirements of the TransformToXML operation, RailCo discovers that the required types are identical. Streamlining the schema design with shared complex types is considered, but RailCo decides against it. It chooses instead to create a second set of elements with redundant complex types because it would like the freedom to change these types independently in the future.

Example 15.10. The additional tpes for use by the TransformToXML operation.



Next, the initial version of the abstract service definition for the RailCo Transform Account Documents Service is completed by providing the remaining message and portType constructs.

Example 15.11. The message and portType constructs of the abstract Transform Accounting Documents Service definition.



Note

RailCo is mandated by TLS to build services that are WS-I Basic Profile 1.1 compliant. This requires RailCo to use the WSDL 1.1 specification to build service interfaces. This suits RailCo fine, as none of its middleware supports newer versions of WSDL anyway.



Step 4: Apply principles of service-orientation

This step highlights the four principles of service-orientation we listed in Chapter 8, as being those that are not intrinsically provided by the Web services platform (service reusability, service autonomy, service statelessness, and service discoverability).

Reuse was discussed in the service modeling process and is addressed directly in Step 5, where we look at making our application service as useful to potential service requestors as possible. However, the existing operation candidates also should be reviewed to ensure they are designed to be generic and reusable.

Autonomy is of primary concern when designing application services. We must ensure that the underlying application logic responsible for executing the service operations does not impose dependencies on the service, or itself have dependencies. This is where the information we gathered in Step 2 of the service-oriented analysis process provides us with a starting point to investigate the nature of the application logic each service operation needs to invoke. Step 6 provides an analysis that covers this and other technology-related issues.

Statelessness also may be more difficult to achieve with application services. Because they are required to interface with a variety of different application platforms, these services are subject to highly unpredictable implementation environments. Sooner or later, application services are bound to encounter challenges that impose unreasonable or inconsistent performance requirements (outdated legacy systems are known for this). Therefore, the best way to promote a stateless application service design is to carry out as much up-front analysis as possible. Knowing in advance what the performance demands will be will allow you to investigate alternatives before you commit to a particular design.

As with entity-centric services, discoverability can be an important part of evolving the application services layer. To guarantee that this design does not overlap with the logic already provided by other application services, a discoverability mechanism is useful. This becomes more of an infrastructure requirement that can be planned as part of an SOA implementation. However, the Document services with metadata guideline still applies, as application services should be supplemented with as much metadata as possible.

Case Study

The Transform Accounting Documents Service undergoes a review to ensure that it is properly incorporating service-orientation principles.

First, the reuse potential of its two operations is assessed:

  • TransformToNative

  • TransformToXML

After some discussion around whether these two operations should be combined into one generic Transform operation, it is decided to leave them as they are. The descriptive nature of the operations is preferred, and RailCo would like the option of evolving each operation separately in the future.

Next, the issues of autonomy and statelessness are discussed. Autonomy is not a problem, given that the logic required to carry out its transformation functions is contained within the service's underlying application logic. In other words, there are no dependencies on other programs. Statelessness also is not considered to be a concern because this service will be responsible for its own processing.

Finally, it is agreed that to better accommodate future discoverability, the service definition be outfitted with additional metadata documentation.

Example 15.12. The Transform Accounting Documents portType construct with supplemental metadata documentation.

<documentation> Retrieves an XML document and converts it into the native accounting document format.
