Customizing the Web Desktop and Report Viewers
The Web Desktop enables the user to make modifications as to how he might want to view the reports. These settings can be based on a per-user basis or set globally by the system administrator with no user privilege being provided for self-selection.
In the default Web Desktop, each user is allowed to self-select a number of display preferences through the preferences page accessed through the Preferences link and icon in the upper-right corner of the Web Desktop. In addition to being able to change passwords on this page, the end user can specify a number of display preferences. The Preferences Page highlighted in Figure 23.6 is broken down into three tabs, namely General Preferences, Crystal Analysis Preferences, and Crystal Report Preferences. Each is discussed in succession in the following sections.

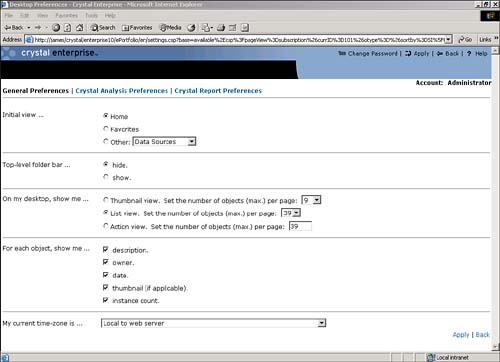

Figure 23.6. General Preferences Page accessed from the Web Desktop. Here users can customize their Web Desktop.
NOTE
The administrator via the Crystal Management Console has the right to remove the preferences icon from the page, effectively removing the user's right to change this.
General Preferences
The General Preferences tab of the Preferences screen provides access to a number of customizable user-display settings for Crystal Enterprise. Table 23.2 presents a description of each of these settings.
|
Options |
Description |
|---|---|
|
Initial View |
Web Desktop navigates to and opens the folder selected. In the default interface, end users can only select Home, their personal favorites folder, or any other top-level folder in the system. They cannot set a subfolder as the default initial view. This can be provided through a customized edit of the underlying settings.csp page if you want. |
|
Top-level Folder Bar |
By selecting Show, the top-level folders are displayed, enabling the user to navigate to folders higher up the folder tree easily. |
|
Views |
The user can see various views of how the reports are displayed. |
|
Thumbnail View |
Crystal Reports can capture a thumbnail of the first page of the report. The user can associate the look of the report with the thumbnail without having to remember what the report is called. |
|
List View |
Lists the objects whereby the user must click on the object to determine the allowed actions. |
|
Action View |
Lists the objects but instead of just showing the objects, this shows the available actions allowed. |
|
For Each Object, Show Me |
Users can select what they find applicable for display purposes among report description, report owner, report date, report thumbnail, or report instance count. |
|
Time Zone |
This is important for users who are going to schedule reports at a particular date and time. The time entered to start the scheduling process is by default local to the Web server (not the CMS). For example, if the user schedules the report and his time zone is PST and the Web server is running in EST then the report runs three hours sooner than expected. This issue is further emphasized when the system has anonymous or guest access enabled because the guest user can only have one time zone associated with it but might be used by many users around the world. If this is the case, it is recommended to establish an account for each of the scheduling users. |
Crystal Analysis Preferences
If Crystal Enterprise is licensed for Crystal Analysis, the user can choose between running the Active X (sometimes called the rich client) or the DHTML versions of the viewer under the Crystal Analysis Preferences tab (see Figure 23.7).
Figure 23.7. The Crystal Analysis Preferences tab.
Crystal Analysis DHTML Viewer
This is the default viewer for Crystal Analysis reports (see Figure 23.8). It does not require any download to the browser and all that is sent to the browser is DHTML.
Figure 23.8. Crystal Analysis Report as viewed in the DHTML viewer.
This viewer gives you the capability to
- Export to Excel: The current view of data is exported to Excel; however, this is a static link and if the current view changes, no data changes in Excel until another export is initiated (see Figure 23.9).
Figure 23.9. View of the report exported to Excel. There is no active link established with the database and should the data change, the report would have to be exported again to reflect the change.
- Save views: The viewer enables the user to save the current view of data back to Crystal Enterprise. This enables the user to return to that exact view of data, or to share this view with other users.
- Navigate between the pages: If the Crystal Analysis application has multiple pages in the application, these viewers enable the user to navigate between these pages either by selecting the page or through the use of transition buttons.
NOTE
In addition to using the DHTML and ActiveX viewers to view OLAP-based data, Business Objects provides an interactive Excel add-in for Crystal Analysis that provides rich multidimensional analytic capabilities from within the Excel environment. This is covered in Chapter 21 and should be explored for organizations with a large number of Excel power users. Additionally, when an export is completed from the ActiveX Viewer, it automatically uses the Crystal Analysis Excel plug-in if it has been installed on the client's desktop version of Excel.
Crystal Analysis Active X Viewer
Although the Active X or Rich Client viewer (see Figure 23.10) requires an initial download to the browser, there is some added functionality that you get with this Rich Client viewer:
- Performance: Some of the work can now be performed on the client.
- Enhanced Excel integration: An active link is maintained between the Excel spreadsheet and the data cube that you are reporting off of. This connection makes the spreadsheet far more dynamic (see Figure 23.11).
Figure 23.11. This view of the data in Excel includes the Crystal Analysis plug-in. Users can right-click a cell and perform functions because an active link is maintained between the cube of data and the spreadsheet.
Figure 23.10. Active X or Rich Client viewer offers some performance gains over the DHTML viewer but requires an initial download.
CAUTION
One concern about the Crystal Analysis viewers is their printing and export capabilities. Crystal Analysis viewers cannot export to formats other than Microsoft Excel. Furthermore, the printing is tricky and it is often difficult to get an Analysis page to reflect accurately on a printed page.
Crystal Report Preferences
This page (see Figure 23.12) enables the user to set preferences specifically around the Crystal Report viewers. Table 23.3 highlights the different options available.
Figure 23.12. The Crystal Report Preferences page describes the Crystal Report options a user can set regarding printing and viewing reports.
|
Option |
Description |
|---|---|
|
Display My Reports |
In a single window, this makes each report appear in the same browser window. This is well-suited to small reports that are executed quickly because multiple browsers are not opened. Multiple Browsers are useful for large reports where there is some wait time before the report is rendered. This way a user can run other reports while she waits for the first to complete. |
|
View My Reports Using |
Enables the user to specify the type of viewer. There are additional viewers other than the four mentioned on this page (ActiveX, DHTML, Advanced DHTML and Java Viewers)see the following section, "Crystal Report Viewers," for further information. |
|
DHTML Viewer Printing Uses |
If the user has selected the DHTML viewer, when printing the user has two optionseither export the report to PDF and use the Acrobat reader printing control or download an ActiveX printing control. |
|
Preferred Measuring Units |
Determines what the preferred unit of measure is defining the reporting page layout. |
Before continuing, it is worth investigating these Crystal Reports viewers in a little more detail.
Crystal Report Viewers
The Crystal Report viewers take the data from the Crystal Enterprise framework and format the data into a report such that it can be viewed.
Table 23.4 provides a listing of the base functionality that the Crystal Report viewers provide.
|
Viewer Option |
Description |
|---|---|
|
Group Tree |
The group tree icon enables the user to either display or hide the group one exist in the report. By default, this is set to display the group tree. |
|
Export |
Should the user want to export the report to another format, this enables the user to export the report. |
|
Refresh |
The report can be refreshed against the data source. This means that it is rerun against the data source. |
|
|
Depending on how the DHTML viewer printing parameter is set, the DHTML viewer either uses a small ActiveX print control to print the document or exports the report to Adobe PDF before using the Adobe client to print it. |
|
Drill-down viewer name |
If the report enables drill-down, the section of data displayed. |
|
First Page |
User is taken to the first page of the report. |
|
Previous Page |
Pages up the report. |
|
Next Page |
Pages down the report. |
|
Last Page |
User is taken to the last page of the report. |
|
Go to page |
User can go to a specific page. |
|
Find |
User can search for any text inside the report and any associated match is highlighted. It is not case sensitive, however; if the text is located in a hidden drill down, the Find might not work. |
|
Zoom |
Scale the report by setting the percent. |
The drill-down functionality provided in the designer is honored by the viewer and users can drill down on charts, group sections, and the group tree.
The look and feel of the DHTML viewer can be customized via the viewer SDK and any of these functions can be turned on or off depending on the requirement.
The Crystal Report viewers are either client-side or server-side reportshence the process of viewing a report is different depending on the viewer used.
Server-Side Viewers
The Server-Side viewers run within the application server framework; for example, the Java DHTML viewer consists of Java classes that run within the Java Application Server. The COM DHTML viewer processes the request within the Web Component Server or WCS. Upon receiving a report request, the Crystal Enterprise framework sends the data in Encapsulated Page Format (EPF) to the application server. A viewer object is instantiated and the application server processes the EPF pages. DHTML consisting of both the data and the viewer controls are then sent through to the Web server.
DHTML Viewer
The DHTML viewer is one of the most commonly used report viewers in Crystal Enterprise, see Figure 23.13. It provides a rich functional interface for viewing and navigating Crystal Reports in a zero client interface. This zero client viewer is implemented via viewreport.csp, that requires the Web Component Server to be running or in a Java environment via viewreport.jsp that requires a Java application server to be running. This viewer can be manipulated via a COM, .NET, or Java APIall explored in the later sections of this book.
Figure 23.13. Report viewed in the DHTML viewer. Both the viewer controls and data are sent in DHTML format.
Advanced DHTML Viewer
The advanced DHTML viewer includes all of the functionality of the DHTML viewer but also includes an advanced search wizard that enables you to search for data by setting conditions and to return the data in a table form.
Use the Advanced Search Wizard icon to toggle the report to display the Advanced DHTML viewer options that are described in Table 23.5.
|
Tab |
Description |
|---|---|
|
Fields tab |
Shows all the fields that were available in the original report, including any formulas and summaries. Select the fields required and sort them by changing the sort order; the field at the top of the list appears first on the list. |
|
Conditions tab |
Apply any filtering to the report as deemed necessary by selecting the fields and setting the conditions that apply. Add as many conditions as required and separate them using an AND or OR condition. The free-form button enables you to write free-form conditions or to check your condition statement. Figure 23.14 shows the Conditions tab. |
|
Results tab |
The Results tab provides the search results (if any) associated with the fields selected in the Fields tab and after application of the filters set in the Conditions tab. These results are provided with active hyperlinks to their respective position in the associated report. Additionally, some quick export functionality is provided to Excel, Word, or HTML. Of further interest is that the active hyperlinks back into the main Crystal Report are maintained through the export and can be used within the newly exported environment. |
Figure 23.14. This report is viewed in the Advanced DHTML viewer. The user could enter a date to show all orders for a particular day.
NOTE
When searching for strings, keep in mind they are case sensitive.
CAUTION
The Advanced DTHML viewer requires the Report Application Server to be installed and running.
Discussions Viewer
The Discussions viewer enables the user to make notes or annotations associated with the involved report or report instance. It enables users to make notes Public or Private, to associate attachments with the notes, and to forward the note to another interested party via e-mail. For example, the sales manager might want to post a note specifying that sales were below what he had expected. Sales representatives could then post their responses to the relevant sections of the report, attaching, for example, a forecast in Excel spreadsheet format. Users can add notes as a follow-up to an existing note, creating what is called a discussion thread, or they can create a new note, starting a new thread (see Figure 23.15).
Figure 23.15. The Discussion viewer showing the beginnings of a discussion thread.
Table 23.6 describes the various Discussion viewer tabs.
|
Tab |
Description |
|---|---|
|
Summary tab |
Enables the user to add new notes and to view the associated text with an exiting note. It also displays the author of the note and a creation timestamp of the note. |
|
Properties tab |
This tab enables the user to set the importance of the note. Highly important notes have a red flag associated with them and notes of low importance have a blue flag associated with them. Notes of normal importance have no flag. Permissions can be public or private. A private permission means only you having access to the note; in other words, it's a note to self. Public means that anybody who has access to the report can see the note. |
|
Notification tab |
Users can send an e-mail notifying other users that a note has been posted. |
|
Attachments tab |
Supporting documentation can be added to the note. Supported attachments can be of file types .doc, .txt, .pdf, .ppt, .xls, .htm, .html, and .zip. |
NOTE
The user needs to select the root of the thread to insert the note. For the initial thread, the report itself needs to be highlighted.
Mobile Viewer
The Mobile viewer enables the user to simulate viewing reports over a WAP-enabled mobile phone or Web-enabled PDA. The design paradigm is simple with only a certain number of characters enabled across the page for fitting into the device. Additionally, these devices typically have limited bandwidth so transferring large reports with thousands of rows would not be an acceptable end-user experience. The Mobile viewer requires that the involved report contain a report part that enables the user to see the critical piece of the report. For example, Figure 23.16 displays the chart of the world sales report as a report part.
Figure 23.16. The Mobile viewer enables the user to simulate viewing reports via a WAP-enabled phone or Web-enabled PDA. Only the initial chart from the World Sales Report is displayed.
Client-Side Viewers
The Client-Side viewers require some components to be downloaded and executed on the client (browser). The Client-Side viewers do offer some enhanced printing and processing capabilities. Additionally, these viewers require an initial download to the client and hence some of the report processing is performed on the client.
ActiveX Viewer
This viewer is available using Microsoft Internet Explorer supporting ActiveX controls. Over and above the standard viewer functionality described previously, this viewer enables users to freeze the pane; in other words, the users can scroll across or down the report and "frozen" sections remain part of the viewable area. This is achieved by right-clicking on a field where you want the panes to the left and above to be frozen. This enables the user to scroll while headings and other sections remain frozen, shown in Figure 23.17.
Figure 23.17. ActiveX viewer provides additional capabilities allowing sections of the viewer to be frozen. The user can scroll across the remaining sections.
The user can also copy a cell value from a report by right-clicking the cell and selecting the copy function.
Java Viewer
The Java viewer (see Figure 23.18) is a Client-Side viewer that is downloaded. It requires that a suitable Java Virtual Machine (JVM) be running on the client. If one is not available, the user is prompted to install one.
Figure 23.18. World Sales Report sample as viewed within the Java viewer.
Crystal Offline Viewer
What makes the Offline viewer different is that you can view Crystal Reports in an offline mode. In other words, the user does not have to be connected to the Crystal Enterprise infrastructure and just needs access to the Crystal Report, that is, the .rpt file. Figure 23.19 displays the World Sales Report in an offline mode.
Figure 23.19. The Offline viewer provides the strongest report manipulation capabilities compared to all the previously mentioned viewers; however, this viewer is not browser-based and requires a Windows desktop download.
NOTE
To use the Offline viewer, you must save the involved report with data. You can accomplish this by using the Save With Data option directly from Crystal Reports or by exporting from Crystal Enterprise to the client's machine.
The Offline viewer itself is the most powerful report viewer with respect to data manipulation. It provides functionality over and above the other viewers and gives you the capability to
- Include a larger number of format options.
- Perform improved search capabilities, enabling partial or whole word text search and case matching.
- Create multiple filters.
- Sort data based on the top or bottom value; for example, show the top five countries in sales.
- Change chart types and format the charts.
The biggest drawbacks to this viewer are the following:
- It is not a Web-based viewer.
- Users cannot refresh data live against the database.
To refresh the data the report would have to be refreshed using the Crystal Reports designer and resaved with data.
Object Package Viewing
Object packages are new to Crystal Enterprise version 10. They require special mention because viewing a package is different than viewing a report object.
Object packages enable the user to schedule a package as opposed to scheduling the individual components. For example, if the user had reports that were related to one another via hyperlinks without object packages, the user would have had to schedule each individual report making sure the parameters were consistent and accurate information was displayed. With object packages, the package of reports can be scheduled as a whole and any common parameters propagated through the package. If three individual reports were run and each report had a date parameter, the user would need to ensure that the date values were consistent across all reports or else the data would not be consistent. With object packages you can run these as one object and propagate the date parameter for each report to ensure consistency.
For more information about setting up an object package, see Chapter 27.
When viewing an object package, Crystal Enterprise displays a list of the objects that are within the package. This tells the user what the package consists of. To view the individual components, click the individual object within the package. The object type opens with its own individual viewer, which is dictated to by the preferences set by the individual user.
Organizing Objects Within the Web Desktop
Within the Web Desktop the user can organize the objects, given the appropriate permissions (see Figure 23.20). This functionality effectively means that users who have the rights can copy, move, rename, create shortcuts, and delete objects and folders to which they have access.
Figure 23.20. Users can organize the objects to which they have access.
The user would click the Organize icon and the screen in Figure 23.20 would appear. She could then navigate through the objects, copying or moving them to the desired location. The Create Shortcut option enables Crystal Enterprise to have one object, but enables multiple users to access that object. This simplifies maintenance because the administrator or user can update a single object and all users that have access see the change. The Update buttons are also context-sensitive; for example, if the user has a report object selected, only available report functions are available.
