Deployment Scenarios
The ASA VPN solution can be deployed in many different ways. In this section, we cover two design scenarios for ease of understanding:
- Single site-to-site tunnel configuration using NAT-T
- Fully meshed topology with RRI
Note
The design scenarios discussed in this section should be used solely to reinforce learning. They should be used for reference purposes only.
Single Site-to-Site Tunnel Configuration Using NAT-T
Figure 15-4 shows a network topology of SecureMe in which it has deployed two Cisco ASAsone at the hub site in Chicago and the other at its London location. However, the London ASA is connected to the Internet using a broadband connection that is set up to perform PAT for the traffic passing through it. Because the PAT device does not allow passing the non-TCP and non-UDP traffic, the security Cisco ASA are set up for NAT-T. During the ISAKMP negotiations, the security Cisco ASA will detect that a PAT device exists between them, therefore forcing the traffic to be encapsulated into UDP port 4500. These security Cisco ASA are set up to send NAT-T keepalives every 20 seconds to keep the connection entries active.

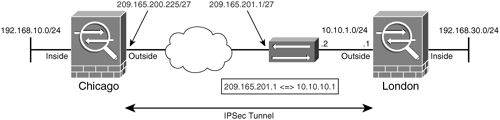

Figure 15-4. SecureMe Network Using NAT-T
Example 15-28 shows the relevant configuration of both Cisco ASAs configured for NAT-T.
Example 15-28. Full Configuration of the Chicago and London ASAs
Chicago ASA: Chicago# show run ! outside interface configuration interface GigabitEthernet0/0 nameif outside security-level 0 ip address 209.165.200.225 255.255.255.224 ! inside interface configuration interface GigabitEthernet0/1 nameif inside security-level 100 ip address 192.168.10.1 255.255.255.0 ! hostname Chicago ! Encryption Access-list to encrypt the traffic from 192.168.10/24 to 192.168.30.0/24 access-list encrypt_acl extended permit ip 192.168.10.0 255.255.255.0 192.168.30.0 255.255.255.0 ! Access-list to bypass address translation from 192.168.10/24 to 192.168.30.0/24 access-list nonat_acl extended permit ip 192.168.10.0 255.255.255.0 192.168.30.0 255.255.255.0 ! NAT entry to bypass address translation from 192.168.10/24 to 192.168.30.0/24 nat (inside) 0 access-list nonat_acl route outside 0.0.0.0 0.0.0.0 209.165.200.226 ! sysopt to bypass traffic filters sysopt connection permit-ipsec ! Transform set to specify encryption and hashing algorithm crypto ipsec transform-set myset esp-3aes-256 esp-sha-hmac ! Crypto map configuration crypto map IPSec_map 10 match address encrypt_acl crypto map IPSec_map 10 set peer 209.165.201.1 crypto map IPSec_map 10 set transform-set myset crypto map IPSec_map interface outside ! isakmp configuration isakmp enable outside isakmp policy 1 authentication pre-share isakmp policy 1 encryption aes-256 isakmp policy 1 hash sha isakmp policy 1 group 2 isakmp policy 1 lifetime 86400 ! NAT-T configuration isakmp nat-traversal 20 ! L2L tunnel-group configuration tunnel-group 209.165.201.1 type ipsec-l2l tunnel-group 209.165.201.1 ipsec-attributes pre-shared-key cisco123 ____________________________________________________________________________ London ASA: London# show run ! outside interface configuration. The outside address is translated to 209.165.201.1 by PAT interface GigabitEthernet0/0 nameif outside security-level 0 ip address 10.10.1.1 255.255.255.0 ! inside interface configuration interface GigabitEthernet0/1 nameif inside security-level 100 ip address 192.168.30.1 255.255.255.0 ! hostname London ! Encryption Access-list to encrypt the traffic from 192.168.30/24 to 192.168.10.0/24 access-list encrypt_acl extended permit ip 192.168.30.0 255.255.255.0 192.168.10.0 255.255.255.0 ! Access-list to bypass address translation from 192.168.30/24 to 192.168.10.0/24 access-list nonat_acl extended permit ip 192.168.30.0 255.255.255.0 192.168.10.0 255.255.255.0 ! NAT entry to bypass address translation from 192.168.30/24 to 192.168.10.0/24 nat (inside) 0 access-list nonat_acl route outside 0.0.0.0 0.0.0.0 10.10.1.2 1 ! sysopt to bypass traffic filters sysopt connection permit-ipsec ! Transform set to specify encryption and hashing algorithm crypto ipsec transform-set myset esp-aes-256 esp-sha-hmac ! Crypto map configuration crypto map IPSec_map 1 match address encrypt_acl crypto map IPSec_map 1 set peer 209.165.200.225 crypto map IPSec_map 1 set transform-set myset crypto map IPSec_map interface outside ! isakmp configuration isakmp enable outside isakmp policy 1 authentication pre-share isakmp policy 1 encryption aes-256 isakmp policy 1 hash sha isakmp policy 1 group 2 isakmp policy 1 lifetime 86400 ! NAT-T configuration isakmp nat-traversal 20 ! L2L tunnel-group configuration tunnel-group 209.165.200.225 type ipsec-l2l tunnel-group 209.165.200.225 ipsec-attributes pre-shared-key cisco123
Fully Meshed Topology with RRI
SecureMe is planning to add a new site, Paris, into its existing network. Figure 15-5 shows the new network topology. SecureMe wants to have a fully meshed topology so that each site will have two IPSec tunnels going to the respective IPSec peers. It also wants to use RRI to distribute remote network information into the local network of Chicago using OSPF.
Figure 15-5. SecureMe Network Using RRI in a Fully Meshed VPN
Example 15-29 shows the relevant configuration of all the Cisco ASA devices set up in a fully meshed IPSec network. There are two crypto map instancesone for each peer configured on the security Cisco ASA.
Example 15-29. Full Configuration of the Chicago, London, and Paris ASAs
Chicago ASA:
Chicago# show run
! outside interface configuration
interface GigabitEthernet0/0
nameif outside
security-level 0
ip address 209.165.200.225 255.255.255.0
! inside interface configuration
interface GigabitEthernet0/1
nameif inside
security-level 100
ip address 192.168.10.1 255.255.255.0
hostname Chicago
! Encryption Access-list to encrypt the traffic from Chicago to London
access-list london_acl extended permit ip 192.168.10.0 255.255.255.0 192.168.30.0
255.255.255.0
! Encryption Access-list to encrypt the traffic from Chicago to Paris
access-list paris_acl extended permit ip 192.168.10.0 255.255.255.0 192.168.40.0
255.255.255.0
! Access-list to bypass address translation from Chicago to other locations
access-list nonat_acl extended permit ip 192.168.10.0 255.255.255.0 192.168.30.0
255.255.255.0
access-list nonat_acl extended permit ip 192.168.10.0 255.255.255.0 192.168.40.0
255.255.255.0
! NAT entry to bypass address translation from Chicago to other locations
nat (inside) 0 access-list nonat_acl
! OSPF configuration for reverse-route injection
router ospf 10
network 192.168.10.0 255.255.255.0 area 0
log-adj-changes
redistribute static subnets
!
route outside 0.0.0.0 0.0.0.0 209.165.200.226 1
! sysopt to bypass traffic filters
sysopt connection permit-ipsec
! Transform set to specify encryption and hashing algorithm
crypto ipsec transform-set myset esp-aes-256 esp-sha-hmac
! Crypto map configuration for London
crypto map IPSec_map 1 match address london_acl
crypto map IPSec_map 1 set peer 209.165.201.1
crypto map IPSec_map 1 set transform-set myset
! Crypto map configuration to enable RRI for London
crypto map IPSec_map 1 set reverse-route
! Crypto map configuration for Paris
crypto map IPSec_map 2 match address paris_acl
crypto map IPSec_map 2 set peer 209.165.202.129
crypto map IPSec_map 2 set transform-set myset
! Crypto map configuration to enable RRI for Paris
crypto map IPSec_map 2 set reverse-route
crypto map IPSec_map interface outside
! isakmp configuration
isakmp enable outside
isakmp policy 1 authentication pre-share
isakmp policy 1 encryption aes-256
isakmp policy 1 hash sha
isakmp policy 1 group 2
isakmp policy 1 lifetime 86400
! L2L tunnel-group configuration for London
tunnel-group 209.165.201.1 type ipsec-l2l
tunnel-group 209.165.201.1 ipsec-attributes
pre-shared-key cisco123
! L2L tunnel-group configuration for Paris
tunnel-group 209.165.202.129 type ipsec-l2l
tunnel-group 209.165.202.129 ipsec-attributes
pre-shared-key cisco123
London ASA:
London# show run
! outside interface configuration
interface GigabitEthernet0/0
nameif outside
security-level 0
ip address 209.165.201.1 255.255.255.0
! inside interface configuration
interface GigabitEthernet0/1
nameif inside
security-level 100
ip address 192.168.30.1 255.255.0.0
!
hostname London
! Encryption Access-list to encrypt the traffic from London to Chicago
access-list chicago_acl extended permit ip 192.168.30.0 255.255.255.0 192.168.10.0
255.255.255.0
! Encryption Access-list to encrypt the traffic from London to Paris
access-list paris_acl extended permit ip 192.168.30.0 255.255.255.0 192.168.40.0
255.255.255.0
!
! Access-list to bypass address translation from London to other locations
access-list nonat_acl extended permit ip 192.168.30.0 255.255.255.0 192.168.10.0
255.255.255.0
access-list nonat_acl extended permit ip 192.168.30.0 255.255.255.0 192.168.40.0
255.255.255.0
! NAT entry to bypass address translation from London to other locations
nat (inside) 0 access-list nonat_acl
route outside 0.0.0.0 0.0.0.0 209.165.201.2
! sysopt to bypass traffic filters
sysopt connection permit-ipsec
! Transform set to specify encryption and hashing algorithm
crypto ipsec transform-set myset esp-aes-256 esp-sha-hmac
! Crypto map configuration for Chicago
crypto map IPSec_map 1 match address chicago_acl
crypto map IPSec_map 1 set peer 209.165.200.225
crypto map IPSec_map 1 set transform-set myset
! L2L tunnel-group configuration for Paris
crypto map IPSec_map 2 match address paris_acl
crypto map IPSec_map 2 set peer 209.165.202.129
crypto map IPSec_map 2 set transform-set myset
crypto map IPSec_map interface outside
! isakmp configuration
isakmp enable outside
isakmp policy 1 authentication pre-share
isakmp policy 1 encryption aes-256
isakmp policy 1 hash sha
isakmp policy 1 group 2
isakmp policy 1 lifetime 86400
! L2L tunnel-group configuration for Chicago
tunnel-group 209.165.200.225 type ipsec-l2l
tunnel-group 209.165.200.225 ipsec-attributes
pre-shared-key cisco123
! L2L tunnel-group configuration for Paris
tunnel-group 209.165.202.129 type ipsec-l2l
tunnel-group 209.165.202.129 ipsec-attributes
pre-shared-key cisco123
