Office Add-Ins

The second pattern used in Office development is the add-in pattern. This book covers several types of Office add-ins. These include VSTO add-ins for Outlook, COM add-ins for Excel and Word, and automation add-ins for Excel:

This book does not discuss some Office add-in technologies. Smart Documents add-ins are not discussed because VSTO provides a much easier way of accessing Smart Document functionality, albeit at the document or template level rather than at the application level. For more information on VSTO's support for Smart Documents, see Chapter 15, "Working with Actions Pane."

Creating an Outlook Add-In in VSTO

To create an Outlook add-in project in VSTO, choose Project from the New menu of the File menu in Visual Studio. Select the Visual C# node from the list of project types, and select the Office node under the Visual C# node. The Outlook add-in project appears in the list of templates. Type a name for your new Outlook add-in project, and pick a location for the project. Then click the OK button.

VSTO creates a project with references to the Outlook 2003 PIA, the core Office PIA, and other needed references, as shown in Figure 2-6. VSTO also adds a project item to the project called ThisApplication.cs. This project item contains a C# class that you will add to when implementing your Outlook add-in.

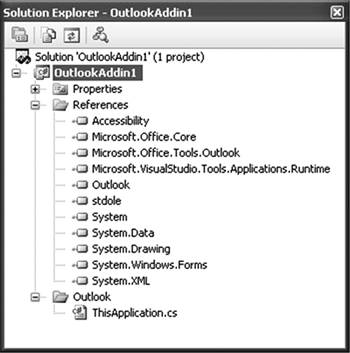

Figure 2-6. The Outlook add-in project in Solution Explorer.

Figure 2-5. Creating a new Outlook add-in project.

If you double-click the ThisApplication.cs project item, you will see the code shown in Listing 2-4. There is a simple Startup and Shutdown event handler where you can write code that executes on the startup and shutdown of the add-in. The ThisApplication class derives from an aggregate of the Outlook Application object. This allows you to access properties and methods of the Outlook Application object by writing code such as this.Inspectors.Count in the ThisApplication class.

Listing 2-4. The Initial Code in the ThisApplication Class in an Outlook Add-In Project

using System; using System.Windows.Forms; using Microsoft.VisualStudio.Tools.Applications.Runtime; using Outlook = Microsoft.Office.Interop.Outlook; namespace OutlookAddin1 { public partial class ThisApplication { private void ThisApplication_Startup(object sender, EventArgs e) { } private void ThisApplication_Shutdown(object sender, EventArgs e) { } #region VSTO Designer generated code private void InternalStartup() { this.Startup += new System. EventHandler(ThisApplication_Startup); this.Shutdown += new System. EventHandler(ThisApplication_Shutdown); } #endregion } }

Looking at Listing 2-4, you might wonder about the use of partial in the class definition. VSTO uses partial classes, which are a new feature of .NET that enables you to define part of a class in one file and another part of a class in a second file and then compile them together as one class. VSTO uses this feature to hide some additional generated code associated with the ThisApplication class from you to reduce the complexity of the class where you write your code. The final ThisApplication class will be compiled from the partial class in Listing 2-4 and additional code in a partial class generated by VSTO that is hidden from you.

The InternalStartup method is generated by VSTO and used to hook up any event handlers generated by VSTO. This is where the Startup and Shutdown event handlers are hooked up. You should not edit this section of the code. We may omit this block of code in some of the listings in this book, but the block of code must be in the classotherwise, the class will fail to compile.

We are going to add to the code in Listing 2-4 to create an add-in that will solve an annoying problempeople replying inadvertently to an e-mail sent out to a mailing alias that contains a large number of people. Unless you have "Vice President" in your title, you probably do not want to be sending e-mail to more than, say, 25 people at any given time. We are going to create an add-in that will warn you if you do this and give you the "This is a potentially career-limiting move. Are you sure you want to send this e-mail to 25,000 people?" message.

Outlook's Application object has an ItemSend event that is raised whenever a user sends an e-mail. We will add additional code to the Startup method of the ThisApplication class to connect an event handler for the ItemSend event, as shown in Listing 2-5. Because the ThisApplication class derives from an aggregate of Outlook's Application object, we can write the code this.ItemSend because ItemSend is an event raised by the ThisApplication base class. The ItemSend event handler takes an object parameter called item, which is the Outlook item being sent. Because item could be any of a number of things, such as a meeting request or an e-mail message, item is passed as an object rather than as a specific type. The ItemSend event handler also has a bool parameter passed by reference called cancel that can be set to true to prevent the Outlook item from being sent.

In our ItemSend event handler, we need to check to see whether the item parameter which is passed as an object is actually an e-mail. The easiest way to achieve this is to use the as keyword to try to cast the item parameter to an Outlook.MailItem. If the cast succeeds, the resulting value will be non-null, and we will know that the item being sent is an Outlook.MailItem and therefore an e-mail message. We can then iterate through the Recipients collection on the MailItem object and check to see whether we are sending to any recipient lists that include more than 25 people. Each Recipient object in the Recipients collection has an AddressEntry property that returns an AddressEntry object. The AddressEntry object has a Members property that returns a collection that we can check the count of. If we find the count to be more than 25, we will show a dialog and ask the user if she really wants to send the mail. If the user clicks the No button, we will set the cancel parameter of the ItemSend event to true to cancel the sending of career-limiting e-mail.

Listing 2-5. A VSTO Outlook Add-In That Handles the ItemSend Event and Checks for More Than 25 Recipients

using System; using System.Windows.Forms; using Microsoft.VisualStudio.Tools.Applications.Runtime; using Outlook = Microsoft.Office.Interop.Outlook; namespace OutlookAddin1 { public partial class ThisApplication { private void ThisApplication_Startup(object sender, EventArgs e) { this.ItemSend += new Outlook.ApplicationEvents_11_ItemSendEventHandler( ThisApplication_ItemSend); } void ThisApplication_ItemSend(object item, ref bool cancel) { Outlook.MailItem myItem = item as Outlook.MailItem; if (myItem != null) { foreach (Outlook.Recipient recip in myItem.Recipients) { if (recip.AddressEntry.Members.Count > 25) { // Ask the user if she really wants to send this e-mail string message = "Send mail to {0} with {1} people?"; string caption = "More than 25 recipients"; MessageBoxButtons buttons = MessageBoxButtons.YesNo; DialogResult result; result = MessageBox.Show(String.Format(message, recip.AddressEntry.Name, recip.AddressEntry.Members.Count), caption, buttons); if (result == DialogResult.No) { cancel = true; break; } } } } } private void ThisApplication_Shutdown(object sender, EventArgs e) { } #region VSTO Designer generated code private void InternalStartup() { this.Startup += new System. EventHandler(ThisApplication_Startup); this.Shutdown += new System. EventHandler(ThisApplication_Shutdown); } #endregion } }

When you run the project with the code shown in Listing 2-4, Outlook launches and the add-in loads. Try sending a mail to an alias that includes more than 25 peopleyou might want to go offline first in case you mistyped the code. If all works right, the add-in will display a dialog box warning you that you are sending an e-mail to more than 25 people, and you will be able to cancel the send of the e-mail. Exit Outlook to end your debugging session.

Chapter 24, "Creating Outlook Add-Ins with VSTO," discusses VSTO Outlook add-ins in more detail. Chapters 9 through 11"Programming Outlook," "Working with Outlook Events," and "Working with Outlook Objects," respectivelydiscuss the Outlook object model.
