Circuit-Switched Networks

There are two main types of circuit-switched WANs: those based on leased lines and customer premises equipment (CPE) to manage the leased lines and those based on ISDN, including both Basic Rate Interface (BRI) and Primary Rate Interface (PRI).

Networks Based on Leased Lines

Leased lines can be configured in two different ways. The first approach uses point-to-point leased lines, as shown in Figure 7.2. In this approach, a communications link joins two nodesand only two nodes. The good thing about this setup, of course, is that there is no contention. The two devices always have an available communications path. The disadvantage becomes pronounced when the network starts to grow, either in the number of devices or in the distance between the locations. Because leased lines are calculated on a mileage-sensitive basis, the cost increases as the network scope increases.

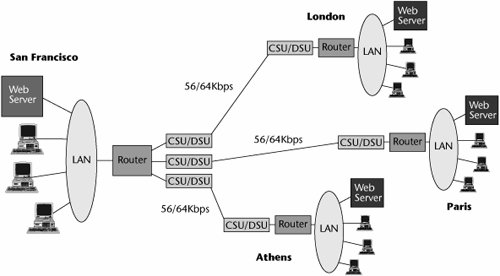

Figure 7.2. A point-to-point leased-line network

To increase the cost-efficiency of a leased-line network, you can use the second approach: a multipoint leased-line network. A multipoint leased-line network has a shared communications facility, and multiple nodes vie for access to the communications link. The advantage of this configuration is that it combines mileage, so the overall monthly cost associated with the leased line is reduced. The disadvantage is that it requires some type of intelligent scheme that helps determine which device gets to use the communications pathway at what time. Figure 7.3 shows a multipoint leased-line network.

Figure 7.3. A multipoint leased-line network

Leased lines can be configured on a point-to-point or multipoint basis by using a number of approaches, including these:

The following sections describe these approaches.

DDSs

A DDS uses leased lines that operate at either 56Kbps or 64Kbps, depending on whether the network uses T-, E-, or J-carrier infrastructure. Figure 7.4 illustrates the equipment associated with a DDS network. Two pieces of equipment are located at the customer site: the DTE (e.g., host computers, routers) and DCE (e.g., the data service unit [DSU]), which are connected to one another via a physical interface (e.g., an RS-232, a V.35). The data access line (i.e., the 56Kbps or 64Kbps facility) runs from the DCE to a specialized DDS hub that is a digital circuit switch. (When this service was introduced, local exchanges were analog, so in order to introduce DDS into a metropolitan area, the telcos had to put into the exchange environment a specific digital circuit-switched hub for those services.) The DDS hubs connect into the digital transport network; destination cities attach to the network the same way, using the same equipment configurations.

Figure 7.4. DDS equipment

A DSU is a device that connects various DTE via RS-232 or V.35 interfaces with the digital services that offer 56Kbps or 64Kbps access. DSUs can be used to accommodate DDS, Frame Relay, and ATM facilities. When a DSU is combined with a channel service unit (CSU), it interfaces with services at the 64Kbps level, as well as n x 64Kbps, up to either T-1, E-1, or J-1 capacities. (These levels are described in detail in Chapter 4, "The PSTN.") The DSU converts the binary data pulse it receives from the DTE to the line-encoding format required by the network. Within the computer, the one bits are positive voltages, and the zero bits are no voltages or low-level voltages. The ones density rule says that if more than 15 zeros in a row are transmitted, the network may lose synchronization, which means transmission errors could occur. Therefore, the DSU performs a bipolar variationit alternates the one bits as positive and as negative voltages. The DSU also supplies the transmit and receive logic, as well as the timing. The CSU provides a means to perform diagnostics.

DDS facilities can be used for LAN interconnection, access to the Internet, and remote PC access to local hosts. One thing to bear in mind with a traditional DDS approach is that it is a leased-line service. If the leased line goes down, the network is out of service, and recovering the service can be a lengthy process, depending on how many network providers are associated with the link end to end. The mere process of troubleshooting and identifying within whose network the problem lies can often lead to resolution times of 24 to 48 hoursor even more, if network managers do not cooperate with one another. If you rely on a DDS network for critical applications, you need a backup in case the leased line fails at some point, and the best backup option is generally switched digital access, a dialup option in which facilities are allocated based on demand rather than associated with a specific customer all the time. Switched digital access supports transmission rates of 56Kbps, 64Kbps, 384Kbps, and 1,536Kbps. Another potential backup is ISDN, which is described later in this chapter.

T-, E-, or J-Carrier Backbone

In the 1980s, as networks, traffic, and applications were evolving and growing, customers saw a rise in the amount of data traffic they were carrying, and they began to institute various data services in response. This resulted in a hodgepodge of single-purpose networks based on leased lines that included unique universes of equipment or specific applications.

For example, assume that your company owns the networks shown in Figure 7.5. Both point-to-point and multipoint leased lines are being used to provide connectivity between LANs in various cities around the world. The PBXs for the most part rely on the PSTN, but there is a leased line between San Francisco and London because of the volume of traffic and security requirements. The videoconferencing systems between San Francisco and London use a specially provisioned satellite link. In essence, there are four separate networks, you're paying for four different infrastructures, and you don't have complete connectivity between all the locations, users, and resources. You therefore want to build an enterprise backbone network that ties together everybody with one common infrastructure and that provides for more fluid connectivity between the various locations and applications. This requires intelligent equipment at each location, to manage the transmission resource and to properly allocate the capacity to voice, data, image, video, fax, or other forms of transmissions.

Figure 7.5. Single-purpose leased-line networks

Fractional Services

Some locations may be too small to justify a full T-1 or E-1 facility. In those cases, fractional services can be used; they allow you to subscribe to capacity in small bundles of 56Kbps or 64Kbps channels, which are generally provided in increments of four channels. These services are referred to as fractional T-1 (FT-1) and fractional E-1 (FE-1) services. However, even though fractional services are technically available, many places do not have them tarriffed, and they are therefore unavailable from a regulatory perspective.

The facilities used to transport the information on this revised network can be combinations of privately owned and leased facilities, but you, the customer, own and are responsible for the equipment to manage those transmission facilities. You might be leasing a T-1 or an E-1 from a network operator, or you might be leasing dark fiber from a railroad company. Between some locations, you might deploy a privately owned digital microwave system. By whatever means you choose, you can integrate what used to be four separate networks into one cohesive backbone (see Figure 7.6). In terms of the capacities and components that would then be used within that backbone, the majority of customers today would rely on the dimensions deliverable from the T-, E-, and J-carrier infrastructure, although those with very large data centers and high levels of multimedia and visual applications have already migrated to the optical carrier levels of the SDH/SONET hierarchy.

Figure 7.6. An enterprise backbone network

A customer needs the following equipment to manage transmission facilities (refer to Figure 4.5 in Chapter 4):

Intelligent multiplexers are the most important equipment in building the enterprise backbone network because they act dynamically to manage transmission resources. They allow you to make on-the-fly decisions about who is allocated the capacity, how much capacity needs to be allocated to each user, and whether individual users have rights to access the resource they want to access. In Figure 7.7, the intelligent muxes basically form a smart computer. An intelligent mux has a port side to which you interface the universe of information resources, which could be the videoconferencing systems, or the voice systems, or the variety of data universe that you have. On the trunk side, you terminate the T-1s/E-1s or T-3s/E-3s.

Figure 7.7. T-1/E-1 and T-3/E-3 muxes

Inside the muxes are databases that allow you to make decisions in real-time. One of the greatest benefits of managing your own bandwidth between locations is that you can use that bandwidth as you need it. There are two ways you can use T-, E-, or J-carrier facilities. First, you can use them as an access pipe. For example, you can use a T-1 to access the local exchange and to replace combined voice and data trunks. When you are using it to access the PSTN, you have to work within the subscribed standards. For example, with T-1 you get 24 channels at 64Kbps per channel, so if you have only a little bit of data to send, you can't reallocate your extra bandwidth to another application. You are stuck with static bandwidth allocation (see Figure 7.8), either 24 64Kbps channels or 1 1,536Kbps channel.

Figure 7.8. Static versus dynamic bandwidth allocation

A second way in which you can use T-, E-, or J-carrier facilities is to build a private network. For example, if you use a T-1/E-1 to tie together two of your own locations, you can basically do as you wish with that pipe. You're in control of it, and you have the intelligent equipment at either end that can manage it on your behalf. For example, you can dynamically assign bandwidth; you can allocate only as much capacity as is necessary for an application, which more efficiently uses the capacity available on the digital facility. When you use a T-1/E-1 to build a private network, you can also perform dynamic alternative routing. For example, in Figure 7.9, the primary route between Los Angeles and New York City is the direct diagonal line between them. But say there is a problem and that link fails. The multiplexer in Los Angeles will be smart enough to know to reroute its highest-priority traffic through Denver to get it to New York. And in Denver, it may reduce the second-priority traffic to third priority in order to make room for the incoming high-priority traffic from Los Angeles. When the primary link is recovered, the network will revert to the original routing mechanisms. Dynamic alternative routing is useful in the face of congestion, failure, and a customer's need to reconfigure capacities based on activities and personnel at given locations at random times.

Figure 7.9. Dynamic alternative routing

Another element that a customer can use in creating a comprehensive enterprise backbone is a digital cross-connect. This purpose of this device, introduced in 1985, was to automate the process of provisioning circuitsin essence, to replace the use of manual patch panels. The key feature of the digital cross-connect system (DCS) is its capability to "drop and insert," which means the cross-connect can exchange channels from one facility to another (refer to Figure 4.7 in Chapter 4). It is used to implement appropriate routing of traffic, to reroute around congestion or failure, or to allow customers to dynamically reconfigure their networks. With digital cross-connects, network configurations are defined entirely in software, which gives the customer great control and allows reconfigurations to be implemented in a matter of minutes rather than hours or days. The levels at which switching can be performed are at the DS-3/CEPT-3 level, DS-1/CEPT-1 level, and DS-0/CEPT-0 level. Sub-DS-0 and sub-CEPT-0 levels are also possible. This capability is also offered by some of the intelligent multiplexersthe T-1/E-1 and T-3/E-3 multiplexersso the functionality can be bundled.

The main applications for digital cross-connects are recovering after disasters, bypassing systems during scheduled maintenance, addressing peak traffic demand, and implementing temporary applications. For customers who need to support even more advanced applicationssuch as computer-aided design, three-dimensional modeling and simulation, visualization, and multimediathe capacities of the T-, E-, and J-carrier infrastructure may not suffice. The next step is to migrate to the SDH/SONET signal hierarchy.

SDH/SONET Backbone

As discussed in Chapter 4, SDH/SONET is the second generation of digital infrastructure, based on the use of fiber optics. With SDH/SONET, an enterprise today might subscribe to OC-1 (51Mbps) and OC-3 (155Mbps) in order to build an enterprise backbone. Service providers, like ISPs, often use the OC-12 (622Mbps) and OC-48 (2.5Gbps) levels, while the largest of carriers rely on OC-192 (10Gbps) backbones. In today's environment, given the high cost of such leased lines, the customers that use the SDH/SONET levels include airports, aerospace companies, universities that have medical campuses or significant art schools, entertainment companies, large government agencies such as the U.S. Internal Revenue Service, and the military. These organizations typically have a greater use of multimedia and visualization applications, requiring this type of bandwidth.

To build a private SDH/SONET network, a customer would need two types of multiplexers: terminal muxes and add/drop muxes (ADMs). A customer would also need two types of cross-connects to build such a network: wideband cross-connects and broadband cross-connects. (Chapter 4 describes these muxes and cross-connects.)

Dark Fiber

With dark fiber, the customer leases the fiber itself and buys the necessary equipment to actually activate the fiber. The customer pays for the physical media, not for bandwidth, and as the customer adds equipment that can either pulse more bits per second or extract more wavelengths out of the underlying fiber, the bandwidth essentially becomes cheaper and cheaper.

Networks Based on ISDN

Another circuit-switched WAN option is ISDN. The International Telecommunication Union Telecommunications Standardization sector (ITU-T) formalized the ISDN standard in 1983. According to the ITU-T (www.itu.org), ISDN is "a network evolved from the telephony integrated digital network that provides end-to-end connectivity to support a wide range of services, including voice and nonvoice services, to which users have access by a limited set or standard multipurpose customer interfaces."

One of the ideas behind Narrowband ISDN (N-ISDN), as the first generation of ISDN was called, was to give customers one access into the network, from which they could then engage in circuit-switched, leased-line, or packet-switched options. Although all these options were available before ISDN, each one generally required its own special access line and device, which meant extra costs and administrative responsibilities because of the large number of options. The goal of ISDN was to provide one plug into the network, from which you could then go out over multiple alternatives.

ISDN Networks

A couple key elements are required to form an ISDN network (see Figure 7.10). First, you must have a digital local exchange, and that digital exchange must be loaded with ISDN software. This is an expensive proposition. The ISDN software alone costs around US$1 million, and each exchange costs in the neighborhood of US$3 million to US$5 million. Along with a digital exchange and the proper ISDN software, you also need a Signaling System 7 (SS7) network and CPE that is compatible with the ISDN network. (SS7 is discussed in detail in Chapter 4.)

Figure 7.10. ISDN components

As discussed in Chapter 2, "Traditional Transmission Media," N-ISDN has two interfaces (see Figure 7.11):

Figure 7.11. N-ISDN network interfaces



ISDN Applications

ISDN can be used in a number of different situations. The following are the main applications for N-ISDN:
