Implementation of Online Photo Shop

11.4.1 Creating a New Web Application

After setting up IIS, start Microsoft Visual Studio.NET and choose New Project. Create a new C# ASP.NET Web application and set the location to http://localhost/OnlinePhotoShop. A new project will be created by the application wizard.

Next, we delete the unneeded default form Webform1.aspx from the project. Then we configure the version control for the source files. For this, open the Visual Studio Options via the Tools menu and use Visual Source Safe settings under the Source Control folder for the General and the SCC Provider settings (see Figure 11.5).

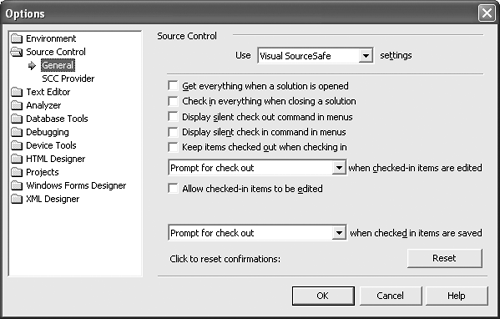

Figure 11.5. Source Control Settings for Visual Studio.NET

Next, we configure source control for the virtual directory that has been created. Open the Internet Services Manager console, which can be found in Control Panel under Administrative Tools. In Internet Services Manager, choose the virtual directory of OnlinePhotoShop in Default Web Site, and open the Properties window (see Figure 11.6). Click on the Server Extensions tab, and choose Visual Source Safe in the Version Control field. Now close and reopen the project on the developer machine to make sure that source control has been set up correctly.

Figure 11.6. Internet Services Manager

11.4.2 Parsing the XML Product Catalog

Let's first add the product catalog sample file products.xml from Listing 11.1 to the OnlinePhotoShop project. Just add a new XML file to the solution and fill it with the products shown in Listing 11.1.

Reading the Product List

Next, we define a new class for the ProductParser utility. This class provides the application with a set of helper methods that parse the XML product catalog for various products and options. Add a member variable mFilename of type string to the class, and set it within the constructor as shown in Listing 11.2. This member stores the file name of the product catalog throughout the lifetime of this class.

Listing 11.2 ProductParser.cs: The ProductParser Class Declaration

using System; using System.Collections; // Hashtable, SortedList using System.Xml; // XmlTextParser namespace OnlinePhotoShop { ///

/// Utility class providing helper methods to parse an XML /// product catalog file. ///

/// F:order_products /// F:products_options public class ProductParser { ///

/// Private member that stores the path of the XML product /// catalog file. ///

private string mFilename; ///

/// Constructor. ///

///Path of XML product catalog /// file. public ProductParser(string filename) { mFilename = filename; } } }

Now we add a method to parse the file for a list of all products. But before adding this method to the class, we must choose or define a return type. Because the list of products will be used as a data source for drop-down lists or similar controls, it is desirable to store each product identifier together with its description in a list. The .NET Framework provides the collections Hashtable and SortedList, in which all entries consist of a Key field and a Value field. The Hashtable class provides faster access to the elements, whereas SortedList, as the name implies, sorts the items in alphabetical order. We can use both classes to group product code and product name in each entry and return such a collection after all products have been parsed. Because we would like to bind the returned list directly to Web page controls, we use the SortedList class for the product and option list and use the Hashtable class for querying details on the products and options.

The .NET Framework class XmlTextReader provides a fast implementation of parsing XML documents. To find all products in the file, we must read all nodes and check the elements for the product tag. If a product tag has been found, the attribute's ID and name are added to the returned list. To avoid parsing additional tags within the same product, we call ReadInnerXml()and the parser advances to the next product tag. Listing 11.3 shows the implementation for a product list query.

Listing 11.3 ProductParser.cs: The ProductList() Method

///

/// Queries all products from a product catalog. ///

/// SortedList where product identifiers are stored in /// the Key field, and product names in the Value field. public SortedList ProductList() { SortedList table = new SortedList(); XmlTextReader parser = new XmlTextReader(mFilename); // read all nodes while(parser.Read()) { if (parser.NodeType == XmlNodeType.Element) { if (parser.Name == "product") { // found a product tag, add new item to list table.Add(parser.GetAttribute("id"), parser.GetAttribute("name")); // read the "inside" of the product tag // to advance to next product parser.ReadInnerXml(); } } } return table; }

Checking Progress through Informal Testing

To monitor our progress with the implementation and check whether the newly added parser method works, we add the Web form Browse.aspx to the project. From the Toolbox, drag and drop a DropDownList Web form control to the design view, and set the property (ID) to Product. The control must be initialized in the Page_Load method. To add code to this method, you must open the code behind file. Right-click on Browse.aspx in Solution Explorer, and select View Code to open Browse.aspx.cs. Locate the Page_Load method, and add the code to get the product list using the ProductParser class and associate it with the Product control.

Listing 11.4 shows how to associate the product list from the product parser with a DropDownList control. DataValueField selects which properties from the list entries represent the values that are set via the control and eventually transmitted back to the server. In our implementation we use the product identifiers stored in Key for this field. On the other hand, TextValueField defines the property of the list item that is displayed on the screen. We associate Value with this field, which contains the product name.

Listing 11.4 Browse.aspx.cs: The PageLoad() Method

private void Page_Load(object sender, System.EventArgs e) { // Put user code to initialize the page here if (!Page.IsPostBack) { // Initialize the product parser ProductParser catalog = new ProductParser(Server.MapPath("products.xml")); // Get the product list and set it in the Product control SortedList products = catalog.ProductList(); Product.DataValueField = "Key"; Product.DataTextField = "Value"; Product.DataSource = products; Product.DataBind(); Product.SelectedIndex = 0; } }

To better understand this, let's start the application and look at the HTML client code generated by IIS for the product list. Running the application requires setting the initial Web page via the project properties. Open the properties via the Project menu, and choose Configuration Properties, Debugging, where you enter Browse.aspx in the Start Page setting. Now the application can be started with the F5 function key.

You will see a Web page with a drop-down list showing Prints and Cups. Let's take a look at the HTML code by selecting the menu View Source in Internet Explorer. Near the end of the code you will find the HTML tags for select and option, which represent the drop-down list.

[View full width]

TOP: 24px">PrintsCups

You can see that the id attribute of the product tag in the XML file has been placed in the value field of the option tags, but it is not visible to the user. The value field, however, contains the name attribute and is displayed on the screen. This example shows that we differentiate between the identifiers and the text displayed to the user.

Finding Product Options

We now extend the ProductParser class by an additional method to parse for each product's option list. The code in Listing 11.5 shows how to generate a list of options for a given product. As with the list of products, each node must be checked for the product key. If the product's identifier does not match the one passed as an argument to this method, all the inner content of this tag is skipped. We also skip all option tags of any product that does not match the passed argument. Therefore, any encountered option tag must belong to the wanted product and can be added to the table that is returned to the caller. For any encountered option tag the attributes id, name, and price are read and merged into the value field.

Listing 11.5 ProductParser.cs: The OptionList() Method

///

/// Queries all options of a given product from a product /// catalog. ///

///Product identifier whose available /// options will be returned. /// SortedList of product options. Each entry's Key /// field refers to the option identifier, and the Value field /// refers to the option name plus price. public SortedList OptionList(string product) { SortedList table = new SortedList(); XmlTextReader parser = new XmlTextReader(mFilename); // read all nodes while(parser.Read()) { if (parser.NodeType == XmlNodeType.Element) { switch(parser.Name) { case "product": if (parser.GetAttribute("id") != product) { // different product, // "eat" up all its content parser.ReadInnerXml(); } break; case "option": { // option found, add to list double price = Convert.ToDouble(parser.GetAttribute("price")); table.Add(parser.GetAttribute("id"), parser.GetAttribute("name") + " - " + price.ToString("C")); } break; } } } return table; }

Extracting the Product Details

Next, we add a method to parse for all information stored in the XML product catalog for a single product. In our product catalog example in Listing 11.1, each product has only two subtags (summary and image), but it would be better to implement the method in a more generic way so that we can add new tags to the product catalog as needed. To address this issue, all encountered tags within a product tag (except for the option fields) are added to a Hashtable object, which is then returned by this method. The tag names are used as keys to identify the values. Listing 11.6 shows the implementation of the ProductDetails() method.

Listing 11.6 ProductParser.cs: The ProductDetails() Method

///

/// Queries all properties of a given product from a product /// catalog excluding the product options. To query the product /// options, use OptionList(). ///

///Product identifier whose properties /// will be returned. /// Hashtable of properties. The keys in the hash table /// refer to the tag names, and the values refer to the text stored /// within the tag. The returned hash table also contains the /// product name attribute. public Hashtable ProductDetails(string product) { XmlTextReader parser = new XmlTextReader(mFilename); Hashtable table = new Hashtable(); string field = ""; // read all nodes while(parser.Read()) { switch (parser.NodeType) { case XmlNodeType.Element: { switch(parser.Name) { case "product": { // if not the wanted product read the inner xml // otherwise add product name to table if (parser.GetAttribute("id") != product) parser.ReadInnerXml(); else table["name"] = parser.GetAttribute("name"); }break; case "option": { // not interested in option tag parser.ReadInnerXml(); break; } default: { // store name of current tag field = parser.Name; break; } } } break; case XmlNodeType.Text: { // store the content using the tag name // as key in the hash table table[field] = parser.ReadString(); } break; } } return table; }

We need a similar implementation for a given product option, a task we leave to you.

Adding Unit Tests

We have been involved in many large projects and have seen many software malfunctions even in simple utility classes implemented by senior software engineers. In one project, an insufficiently tested and late-tested utility class to read configuration values from a text file led to several weeks' delay in the release schedule of a large project involving several dozen people. The class had been implemented by the technical leader of the project, and therefore no one suspected it of having any errors. But very late during the system tests, many problems occurred when the team incorporated this class with other components and tested various application configurations. A project must minimize the risk of such situations.

As we did with the photo editor, we continue using the NUnit framework for our unit testing by following these steps:

1. Add a new class UnitTest: This class will encapsulate all unit test methods for the Online Photo Shop application.
2. Add a reference to nunit.framework.dll: Add a reference to OnlinePhotoShop project in Solution Explorer.
3. Use the NUnit.Framework namespace: Add a state to use NUnit.Framework to the UnitTest.cs file. For simplicity, we also add the namespaces needed for the test code at this point: System.IO,System.Runtime.Serialization.Formatters.Binary, System.Collections, System.Xml, and System.Configuration.
4. Set the [TestFixture] attribute: The [TestFixture] attribute must be set for the UnitTest class in the file UnitTest.cs.

To validate the correctness of the implementation, we need to know about the data in the XML product catalog. One way is to manually create a product catalog only for testing containing some known values. Another way is to programmatically create a synthetic product catalog file in which each element or attribute has a unique value. The latter choice has the advantage that later it would be easy to add stress or performance tests that could test against thousands of products and product options. Even though there is no such requirement for Online Photo Shop, we use the approach of a generated product catalog over the manually created one.

Listing 11.7 shows an XML product catalog file defining two products. In this file every element or attribute value is composed of the element's or attribute's name plus a sequence number for each product and option. A test can now very easily validate the content of the file by comparing element values against their names.

Listing 11.7 Generated Product Catalog Example

product_summary1 product_image1option_summary11option_summary12 product_summary2 product_image2option_summary21option_summary22

In Listing 11.8 the method CreateProductCatalog shows how this synthetic product catalog file can be created programmatically.

Again, the importance of unit testing can be underlined by an error in the XmlTextReader class of .NET Framework 1.1 when you use the ReadInnerXML method to parse XML text files that do not use any indentation. A minimal level of unit testing should always be done even for classes provided by external frameworks or toolkits, including the .NET Framework itself. In a fairly short time, Microsoft has developed one of the largest class libraries ever built, and it would be a miracle if the problem that we found here were the last one.

Listing 11.8 UnitTest.cs: The CreateProductCatalog() Method

///

/// Creates a temporary XML product catalog with a given set of products and options. ///

///Number of product entries in the catalog. ///Number of options for each product. /// File path of the generated XML product catalog. string CreateProductCatalog(int products, int options) { // Get path for a temporary file string file = System.IO.Path.GetTempFileName(); // create a temp XML file XmlTextWriter writer = new XmlTextWriter(File.CreateText(file)); // Bug in .NET Framework, ReadInnerXML works only indented writer.Formatting = System.Xml.Formatting.Indented; writer.WriteStartDocument(); writer.WriteStartElement("doc"); writer.WriteStartElement("products"); for (int p = 1; p <= products; p++) { writer.WriteStartElement("product"); writer.WriteAttributeString( "id", "product_id" + p.ToString()); writer.WriteAttributeString( "name", "product_name" + p.ToString()); writer.WriteElementString( "summary", "product_summary" + p.ToString()); writer.WriteElementString( "image", "product_image" + p.ToString()); for (int o = 1; o <= options; o++) { writer.WriteStartElement("option"); writer.WriteAttributeString( "id", "option_id" + p.ToString() + o.ToString()); writer.WriteAttributeString( "name", "option_name" + p.ToString() + o.ToString()); writer.WriteAttributeString( "price", p.ToString() + "." + o.ToString()); writer.WriteElementString("summary", "option_summary" + p.ToString() + o.ToString()); writer.WriteElementString("weight", "0." + p.ToString() + o.ToString()); writer.WriteEndElement(); // option } writer.WriteEndElement(); // product } writer.WriteEndElement(); // products writer.WriteEndElement(); // doc writer.WriteEndDocument(); writer.Close(); return file; }

Writing a test to validate the ProductList and OptionList methods of the ProductParser class is now very simple. Listing 11.9 shows a method that tests both lists. First, we create a temporary product catalog with 10 products, each product having five options. Then each item in the product list is checked for correctness. The product name must simply match the identifier used for the lookup. To validate the functionality of the OptionList method, we pick one product and retrieve its options. The validation of the option list is similar to that of the product list.

Listing 11.9 UnitTest.cs: The ProductParserListsTest() Method

///

/// Test the ProductList and OptionList methods of ProductParser. ///

/// F:order_products /// F:products_options [Test] public void ProductParserListsTest() { string tmpFile = this.CreateProductCatalog(10, 5); ProductParser parser = new ProductParser(tmpFile); // check product list SortedList p = parser.ProductList(); Assertion.AssertEquals(p.Count, 10); for (int i = 0; i < p.Count; i++) { Assertion.AssertEquals( p["product_id" + (i + 1).ToString()], "product_name" + (i + 1).ToString()); } // check one option list, pick one from the center SortedList o = parser.OptionList("product_id3"); Assertion.AssertEquals(o.Count, 5); for (int i = 0; i < o.Count; i++) { Assertion.AssertEquals( o["option_id3" + (i + 1).ToString()], "option_name3" + (i + 1).ToString() + " - " + (3 + (i + 1) / 10.0f).ToString("C")); } File.Delete(tmpFile); }

When running the test using the NUnit GUI, we are surprised by a failed test. Looking closer, we can see that an error occurs when a file is deleted (see Figure 11.7).

Figure 11.7. Failed Unit Test

Let's assume that the access rights to the temporary file allow its deletion; perhaps the cause of this error is that the file is still in use. Although the .NET runtime frees all unreferenced objects after garbage collection kicks in, the time when objects will be destroyed is not determined. Because we do not close the file handle before any of the parsing methods returns to the caller, the XmlTextParser object goes out of scope with an open file handle. So only after the garbage collection picks up and destroys this object can the file finally be closed. Because the parsing methods are used very frequently in the Online Photo Shop application, this would lead to increasing consumption of file handles in a system. To avoid problems that can be caused by this, we add parser.Close() before returning from the parsing methods ProductList, OptionList, ProductDetails, and OptionDetails. Compiling the assembly and rerunning the test now results in a passed test.

Next, we add the method ProductParseDetails to test the ProductDetails and OptionDetails methods. As with the preceding test, the implementation is straightforward. We create a temporary product catalog and validate some parsed elements against the synthetic data stored in the catalog. Listing 11.10 shows the test code.

Listing 11.10 UnitTest.cs: The ProductParserDetailsTest() Method

///

/// Test the ProductDetails and OptionDetails methods of ProductParser. ///

/// F:order_products /// F:products_options [Test] public void ProductParserDetailsTest() { string tmpFile = this.CreateProductCatalog(20, 3); ProductParser parser = new ProductParser(tmpFile); // check product details of the 20th entry Hashtable p = parser.ProductDetails("product_id20"); Assertion.AssertEquals((string) p["name"], "product_name20"); Assertion.AssertEquals( (string) p["summary"], "product_summary20"); Assertion.AssertEquals( (string) p["image"], "product_image20"); // check some option details (3rd product, 2nd option) Hashtable o = parser.OptionDetails( "product_id3", "option_id32"); Assertion.AssertEquals((string) o["name"], "option_name32"); Assertion.AssertEquals( (string) o["summary"], "option_summary32"); Assertion.AssertEquals( (string) o["price"], (3.2f).ToString()); File.Delete(tmpFile); }

11.4.3 The Online Shop Portal

Figure 11.8. Table Layout for Browse.aspx

After adding the tables, place the previously added Product drop-down list in the center column of the header section. Changing the product selection invalidates all the information currently displayed, so we set this control's AutoPostBack property to True. In this way, a change in the product selection will trigger an automatic response to the Web server.

Before adding new code to the page, let's complete the design of the form by adding all controls:

• Header: Drag and drop two Button controls next to the Product drop-down list. Set the ID and Text properties for the left button to Previous, and for the right button to Next. Then add a Hyperlink control to the right column, and change the Text property to Shopping Cart and the NavigateUrl to Cart.aspx, which will be implemented later in this chapter.
• Product: Add two Label controls to the product description column of the product section. Set the label ID properties to ProductHeading and ProductSummary. Also add an Image control to the product image column, and change its ID property to ProductImage.
• Order: Add a File Browser control for the image to the form. Drag and drop a File field from the HTML section in the Toolbox into the browse column. Right-click on the control and select Run As Server Control. Then change the id property of this control to Image. Now place a RadioButtonList into the option column, and set the ID to Option. The quantity column is filled with a DropDownList control, whose ID property is set to Quantity. To finish the order section, place a Button control in the submit column. Change the ID property of the button to AddButton, and the Text property to Add. Also add another label for user feedback below the button. Set the ID to Feedback, and clear the Text property so that nothing is displayed by default.

Figure 11.9 shows the completed design of the Browse.aspx form.

Figure 11.9. Browse.aspx Design

Because we want to upload binary data, we also need to manually check the HTML code generated by the form designed in Visual Studio. You can switch to the HTML view using the context menu of the design window. First, we make sure that the

tag spans the entire page (from

to ). This is most likely not the case, and you must manually move the form closing tag right before the tag. Next, add the encType attribute to the form tag, and set its value to "multipart/form-data". This allows transmission of binary files (in our case, images) to the server (see Listing 11.11).

Listing 11.11 Browse.aspx: Modifying the

Tag

[View full width]

<%@ Page language="c#" Codebehind="Browse.aspx.cs" AutoEventWireup="false" Inherits="OnlinePhotoShop.Browse" %>

Browse

. . . }

The design of the form is complete, and it's time to add the logic behind it. Open the code for the form by right-clicking on Browse.aspx in Solution Explorer and selecting View Code. We first implement the utility method shown in Listing 11.12 for the Browse form class, which updates all controls depending on the currently selected product.

Listing 11.12 Browse.aspx.cs: The UpdateProduct() Method

[View full width]

///

/// Updates the ProductHeading, ProductSummary, ProductImage, and Option controls depending on the currently selected product in the Product control. /// private void UpdateProduct() { ProductParser catalog = new ProductParser(Server.MapPath("products.xml")); // set the available options for this product Option.DataValueField = "Value"; Option.DataTextField = "Text"; Option.DataSource = catalog.OptionList(Product.SelectedValue); Option.DataBind(); Option.SelectedIndex = 0; // get the product details System.Collections.Hashtable details = catalog.ProductDetails(Product.SelectedValue); // update controls in product section if (details["name"] != null) ProductHeading.Text = (string) details["name"]; if (details["summary"] != null) ProductSummary.Text = (string) details["summary"]; if (details["image"] != null) ProductImage.ImageUrl = (string) details["image"]; }

The UpdateProduct method uses the helper class ProductParser (implemented earlier in this chapter) to retrieve the product options and details from the XML catalog. This method must be invoked from the Page_Load method to properly initialize all controls. Also, the Quantity control must be associated with a data source containing numbers. This list is also generated in the Page_Load method. Listing 11.13 shows the updated code.

Listing 11.13 Browse.aspx.cs: Updated Page_Load() Method

private void Page_Load(object sender, System.EventArgs e) { // Put user code to initialize the page here if (!Page.IsPostBack) { // Initialize the product parser ProductParser catalog = new ProductParser(Server.MapPath("products.xml")); // Get the product list and set it in the Product control Hashtable products = catalog.ProductList(); Product.DataValueField = "Key"; Product.DataTextField = "Value"; Product.DataSource = products; Product.DataBind(); Product.SelectedIndex = 0; // Fill Quantity with a list of numbers ArrayList numbers = new ArrayList(); for (int i = 1; i <= 20; i++) { numbers.Add(i.ToString()); } Quantity.DataSource = numbers; Quantity.DataBind(); Quantity.SelectedIndex = 0; // Update all other controls this.UpdateProduct(); } }

Now that we have properly initialized the form, it is time to give it a first try in the Web browser. To launch the form from Visual Studio, you must set it as the start page of the project. Select Debugging in the Configuration Properties section of the project properties, and set the Start Page field to Browse.aspx. Now the form can be launched in Internet Explorer from Visual Studio by selecting Debug and Start or by pressing F5. The default product should be cups, giving two options to choose from.

If you are wondering about the error icon in the image, this is caused by the missing image file that has been specified in the XML product catalog. To solve this problem, create an img folder under the OnlinePhotoShop project, and copy two images for the cups and prints product categories there.

Although the page looks nearly complete, we have not yet implemented the navigation logic. To do so, go back to the design view and double-click on the Product drop-down list control. Visual Studio generates a message handler for the event of a changed selection in the drop-down list. All you need to do is to call the UpdateProduct method to update the option list and product description fields.

Next, double-click on the buttons in the header section. This will create event handlers for the event of those buttons being pressed or clicked. Fill the handlers with code that increments or decrements the selected index of the Product control. There, we also need to consider the boundary conditions of being at the start or end of the product list. After the implementation of the event handlers shown in Listing 11.14, we can navigate through the product catalog using the drop-down list as well as the Next and Previous buttons.

Listing 11.14 Browse.aspx.cs: Event Handlers

[View full width]

///

/// Called when a new product is selected in the Product control. Updates the product description and optionlist by calling UpdateProduct(). /// ///Sending object. ///Event arguments. private void Product_SelectedIndexChanged(object sender, System.EventArgs e) { this.UpdateProduct(); } /// /// Called when the Next button is pressed. Selects the next product in the list and updates the product description and optionlist by calling UpdateProduct(). /// ///Sending object. ///Event arguments. private void Next_Click(object sender, System.EventArgs e) { if ((Product.SelectedIndex + 1) < Product.Items.Count) { Product.SelectedIndex++; } else { Product.SelectedIndex = 0; } this.UpdateProduct(); } /// /// Called when the Previous button is pressed. Selects the previous product in the list and updates the product description and optionlist by calling UpdateProduct(). /// ///Sending object. ///Event arguments. private void Previous_Click(object sender, System.EventArgs e) { if (Product.SelectedIndex > 0) { Product.SelectedIndex; } else { Product.SelectedIndex = Product.Items.Count - 1; } this.UpdateProduct(); }

This completes the implementation of the requirement keys F:products_browse and F:product_options. The keys left to implement in this iteration are F:product_shopping_cart and F:product_customize. Figure 11.10 shows the form rendered by Internet Explorer.

Figure 11.10. Rendered Browse.apsx

11.4.4 The Shopping Cart

To start the implementation of the shopping cart functionality, we design a class that describes a single order item. This class is very simple and mainly provides data encapsulation by using get accessors. The properties to be implemented are as follows:

• Product: Product identifier of the item
• Option: Identifier of the option selected for this item
• Quantity: Quantity of items ordered
• ClientPath: Path for image file on the client computer
• ServerPath: Path of the uploaded image

Add a new class ShoppingItem to the project, and add members and get accessors for those properties.

Serialization for the ASP.NET State Server

Because of the architectural requirement C:online_shop_stateservice (see Chapter 4), this class must be serializable to allow the usage of the ASP Session State service. To make a class serializable, it must be inherited from ISerializable and must implement the serialization function as well as a deserialization constructor (see Listing 11.15). Furthermore, the class must have the Serializable attribute set, and the permission flags for GetObjectData must allow the SerializationFormatter.

To switch the application to use the session state service from ASP.NET, we must change the Web.config file. Locate the sessionState tag in the configuration section, and change the value of the mode attribute from InProc to StateServer. To run the application now, we must first start the service called "ASP.NET State Service". You do so by running the following command:

net start "ASP.NET State Service"

Listing 11.15 ShoppingItem.cs: Serialization

[View full width]

using System; using System.Runtime.Serialization; using System.Security.Permissions; namespace OnlinePhotoShop { ///

/// Class that contains all information to describe one item in the shopping cart ( product id, option id, quantity, and image locations). /// [Serializable()] public class ShoppingItem : ISerializable { #region ISerializable Members /// /// The serialization function. /// ///The object to be populated with serialization information.
